Overview

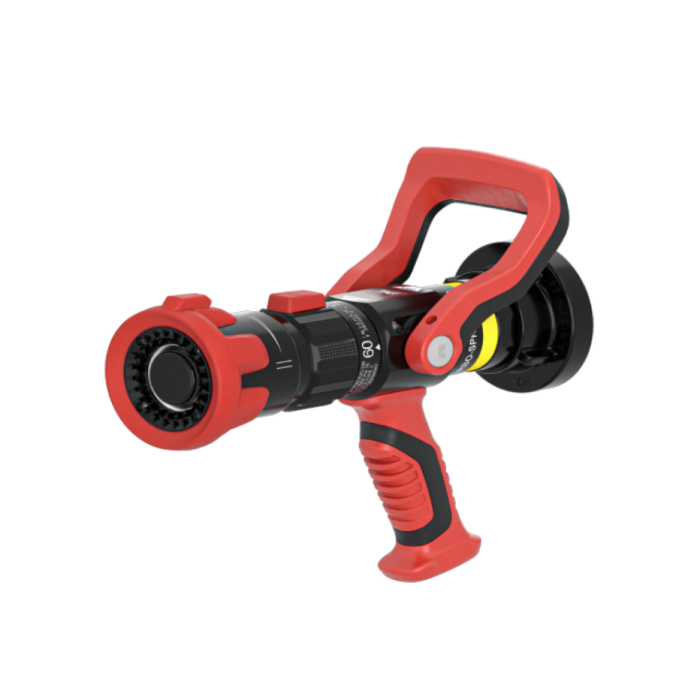

The Turbojet is an adjustable gallonage fire nozzle with multiple flow settings so you can select the best for your situation. Take this nozzle from straight stream to wide fog with just a quarter turn bumper adjustment.
Not only is this compact, lightweight nozzle easy to use, but also it provides excellent stream performance.
Buy now or find a distributor near you to learn more about the Turbojet adjustable gallonage nozzle.
NOTE: Nozzle will be shipped with removable pistol grip.
Features
- Pattern Identification
- Larger more legible labels
- Simple to operate (1/4 turn from straight stream to fog)
- Raised lug marks straight stream for limited visibility operations
- Easy to service & repair
- 100 psi (7 bar) standard
- Compatible with Quick Attach Foam Tube Style 792
- Replacement for style 1715 nozzle
1 1/2” Turbojet® Nozzle with Removable Pistol Grip 100 PSI, NH Thread
- Product code:
- 17204001
- Availability:
-
Available
- Applications:
- Engineered Solutions, Fire OEMs, Firefighting - Airport (ARFF), Firefighting - Industrial, Firefighting - Structural, Firefighting - Wildland Forestry, Mining, Petro-Chemical
Technical details & documents
For the 1 1/2” Turbojet® Nozzle with Removable Pistol Grip 100 PSI, NH Thread
To view all document login to your account
| Style | 1720 |
|---|---|
| Certifications | EN 15182, NFPA 1964, Factory Mutual System (FM), CE Certificates |
| Family | Selectable Gallonage |
| Brand | Akron Brass |
| Application Solutions | Engineered Solutions, Fire OEMs, Firefighting - Airport (ARFF), Firefighting - Industrial, Firefighting - Structural, Firefighting - Wildland Forestry, Mining, Petro-Chemical |
| Material | Pyrolite |
| Finish | Pyrolite |
| Swivel Inlet (English) | 1 1/2'' |
| Swivel Inlet (Metric) | 38 mm |
| Weight (Imperial) | 4 lbs |
| Weight (Metric) kg | 1.8 kg |
| Length (English) | 9 1/2'' |
| Length (Metric) | 232 mm |
| Engine Power | $0.00 |
| Flow GPM | 30-60-95-125 |
| Flow GPM | 30-60-95-125 at 100 and 75 psi |
| Flow LPM | 115-230-360-475 at 7 & 5 bar. 100-200-300-450 at 6 bar EN |
Turbojet Nozzle Specifications
Lightweight fog and straight stream Style 1720 nozzle with multiple fixed constant gallonage settings of 30-60-95-125 GPM (115-230-360-475 lpm) at 100 psi (7 bar) shall be provided. CE flow at 87 psi or 6 bar is 100-200-300-450 LPM. The nozzle shall have spinning teeth, multiple pattern detents, a one piece solid rubber-like handle with dual handle stops, dual drive trunnions and an extruded Pyrolite body. The nozzle shall also have a minimum 110° angle at wide fog, a full-time swivel inlet, come with a ten year warranty, be capable of flushing without shutting down. Must meet all aspects of NFPA 1964 with test results available.
